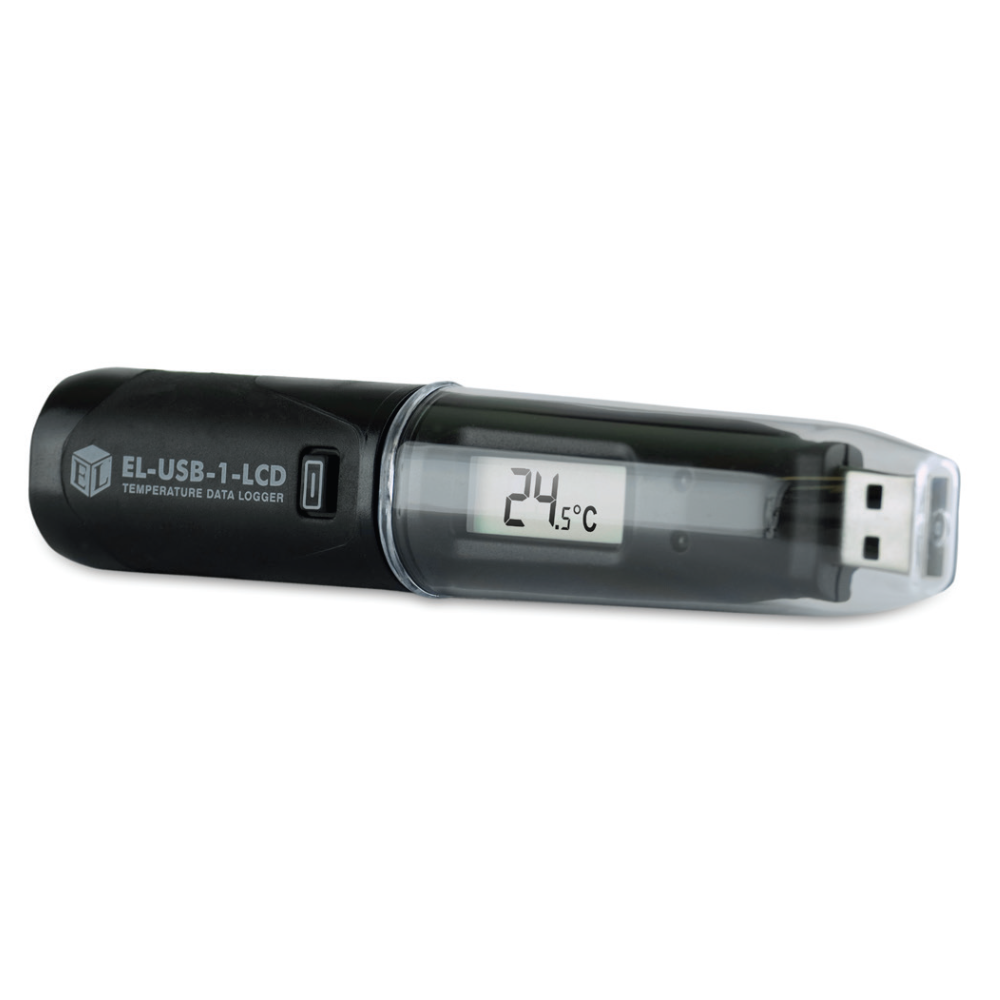

This standalone data logger measures and stores more than 16,000 temperature readings over a -35 to +80°C (-31 to +176°F) range
with a resolution of 0.5°C (0.5°F).

The user can easily set up the logger and view downloaded data by plugging the data logger into a PC’s USB port and using the free
EasyLog software. Data can then be graphed, printed and exported to other applications for detailed analysis.

The high contrast LCD can show a variety of temperature information. At the touch of a button, the user can cycle between the
current, maximum and minimum stored values for temperature.

The data logger is supplied with a lithium metal battery which gives two year’s logging life. The logger is protected against ingress
from water and dust to IP67 standard when the cap is fitted.

SPECIFICATIONS
Measurement range: -35 to +80°C (-31 to +176°F)
Internal resolution: 0.5°C (0.5°F)
Accuracy (overall error): ± 0.5°C typical (see graph on page 3)
Logging rate: User selectable between 10 seconds & 12 hours
Operating temperature range: -35 to +80°C (-31 to +176°F)
Battery Life: 2 years (at 25°C and 1 minute logging rate, LCD on)
Readings: 16,378
Dimensions: 120 x 25 x 22mm (4.72 x 0.98 x 0.86”)

Download Datasheet: EL-USB-1-LCD
