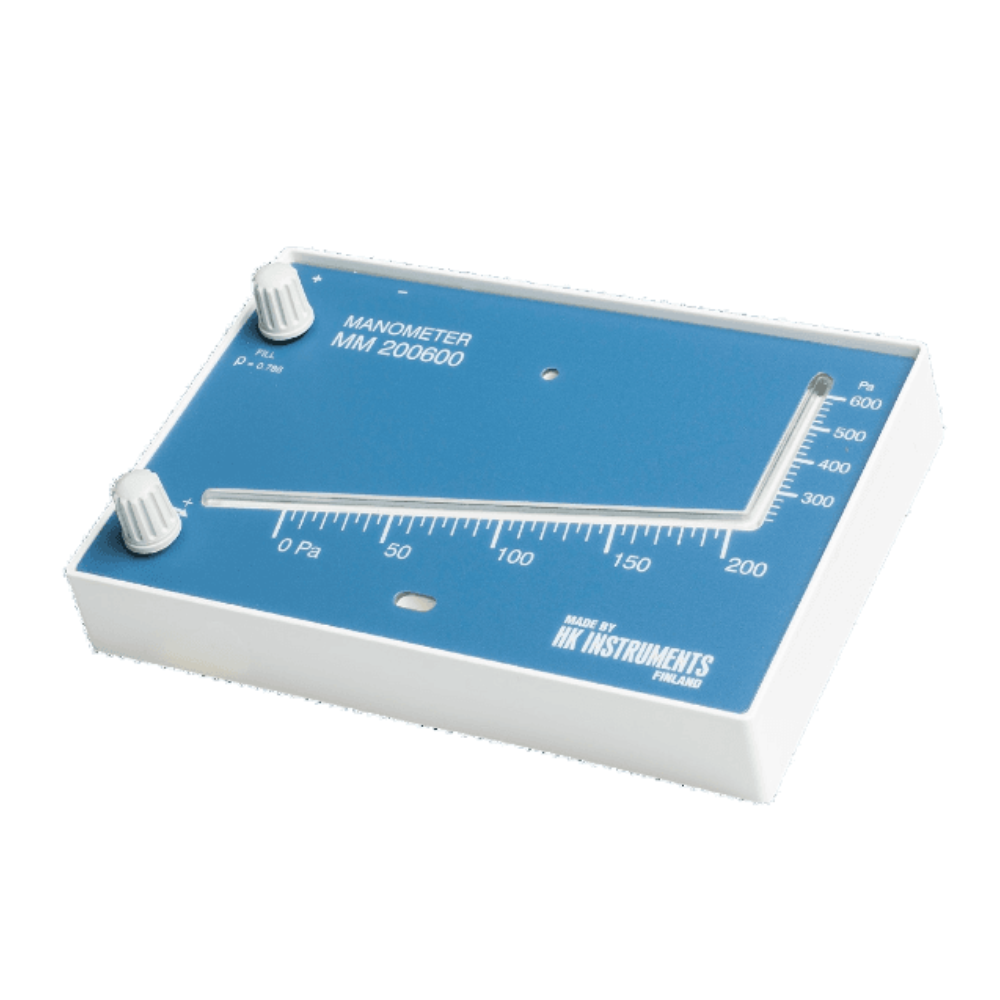

The MM series liquid column manometers are engineered for HVAC/R applications. The MM series devices detect air and non-corrosive gas pressures (differential, vacuum and positive) and provide a clear analog display of the measured values. The MM series is designed with a reservoir to protect the manometer liquid from leaking into the duct during overpressure situation.
There are no reviews yet.
Questions and answers of the customers
There are no questions yet, be the first to ask something for this product.
Technical specifications
Measurement ranges: 0…200…600Pa
Accuracy: 0...200 Pa ±5 Pa / 200...600 Pa ±25 Pa
Overpressure: Max pressure 200 kPa
Media compatibility: Dry air or non-aggressive gases
Measuring units: Pa
Case: ABS
Cover: PMMA
Knobs: Polycarbonate (PC)
O-ring: Nitrile rubber (NBR)
Weight: 420 g
Operating temperature: -40...+60 ºC
Gauge fluid: Red: s.g. 0.786 kg/dm (15 °C) (Isopar M)
Conformance
Meets the requirements for CE marking:
RoHS Directive: 2011/96/EU
