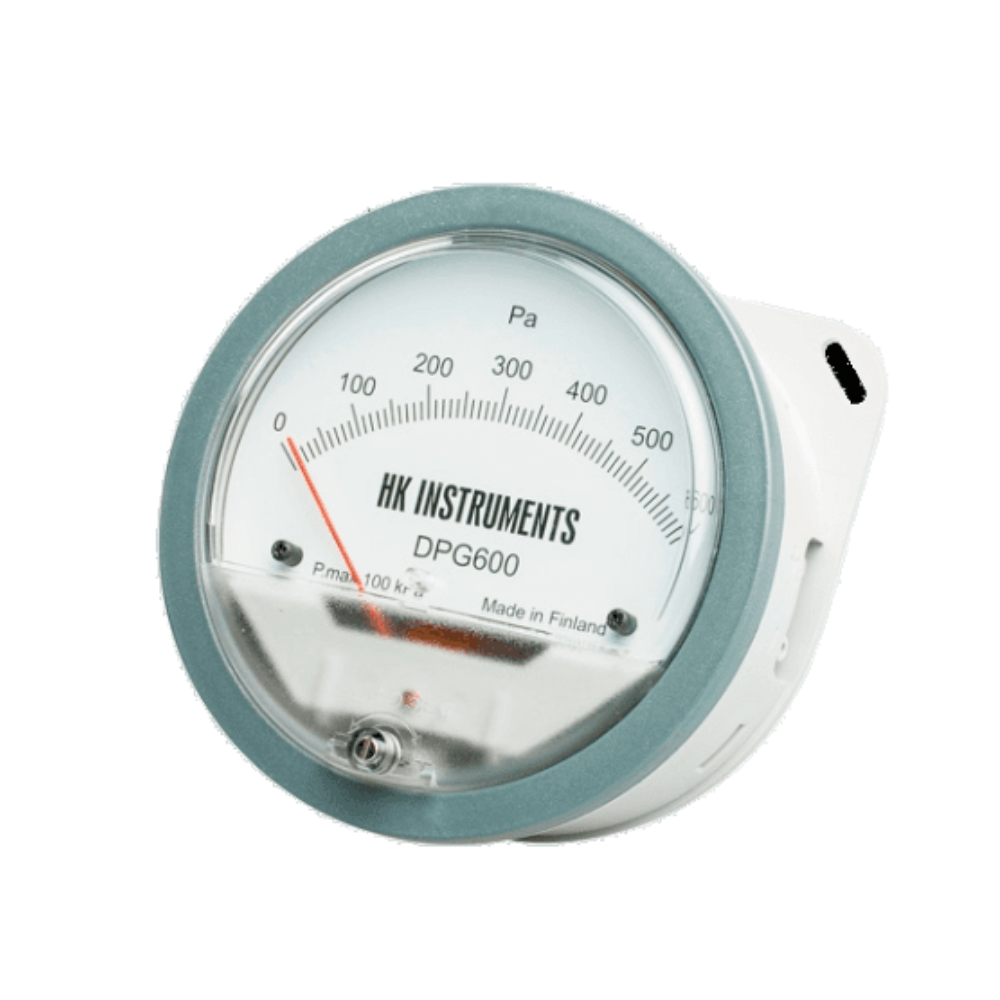

The DPG series differential pressure gauges are engineered for HVAC/R applications. The DPG series devices measure air and non-corrosive gas pressures (differential and positive) and provide a clear analog display of the measured values. The DPG series devices include field adjustable zero point calibration and overpressure protection.
There are no reviews yet.
Questions and answers of the customers
There are no questions yet, be the first to ask something for this product.
Technical specifications
Measurement ranges: 0–500 Pa
Accuracy: < ± 3 % F.S (20 °C), (DPG60 < ± 5 %; DPG100 < ± 4 %)
Overpressure: Burst pressure: 20 kPa
Media compatibility: Dry air or non-aggressive gases
Measuring units: Pa
Case: ABS
Cover: PC
Membrane: Silicone
Machinery: Aluminum and steel spring
Unit mounting diameter: 110 mm
Weight: 234 g
Protection standard: IP65
Conformance
Meets the requirements for:
CE: RoHS: 2011/65/EU
UKCA: S.I. 2012/3032
