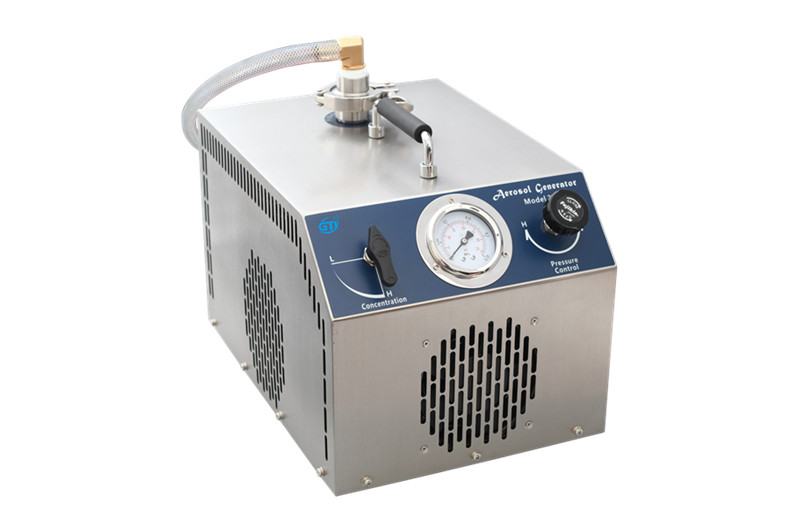

The Model 3990-03 is a portable compact aerosol generator, which an on-hoard air compressor supplies the necessary pressure for producing a poly-disperse oil aerosol/ No other attaching air source requested. When it’s total output at 23psi (158kPa) and as under this Max. pressure is diluted by 50~2000cfm(85~3396m3/h) of air, the aerosol concentration will bw approximately 10~100μg/L for available generating.
There are no reviews yet.
Questions and answers of the customers
There are no questions yet, be the first to ask something for this product.
- Airflow range : 50 - 2000cfm
- Aerosol Concentration : 100μg/L@200cfm 10μg/L@2000cfm
- Nozzles selection : L(low) / H(high)
- Size (LxWxH) : 38x27x26cm
- Weight : 18.5kg
- Power source : 100~125V 60Hz 54A. or 210~235V 50Hz 2.5A
- Fuse : 5x20mm, 10A
- Aerosol Reagent : PAO-4, DOS, Ondina EL, DOP, Mineral oil, Paraffin, or Corn Oil liquid aerosol reagent.
- Duty Cycle : Intermittent on/off; or Less than 1hour on
- Ambient Temperature : 5~40ºC
- Ambient Pressure : Standard Atmosphere
- Ambient Humidity : 5%~85%RH
- Storage requirements : -25ºC~55ºC
